XP50-X2-X4

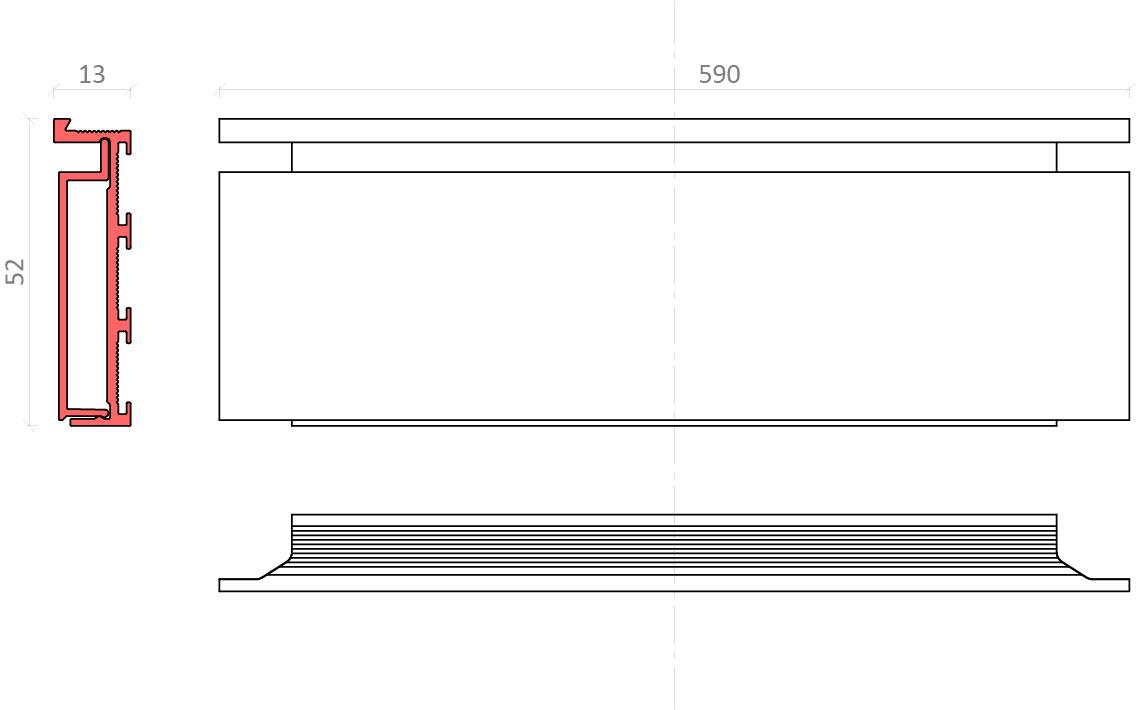

XP50 connecting plinth



The XP50 is a plinth that, once the wall is finished, is completely flush with the wall surface. Our XP50 connecting plinth ensures a seamless transition to our door system.

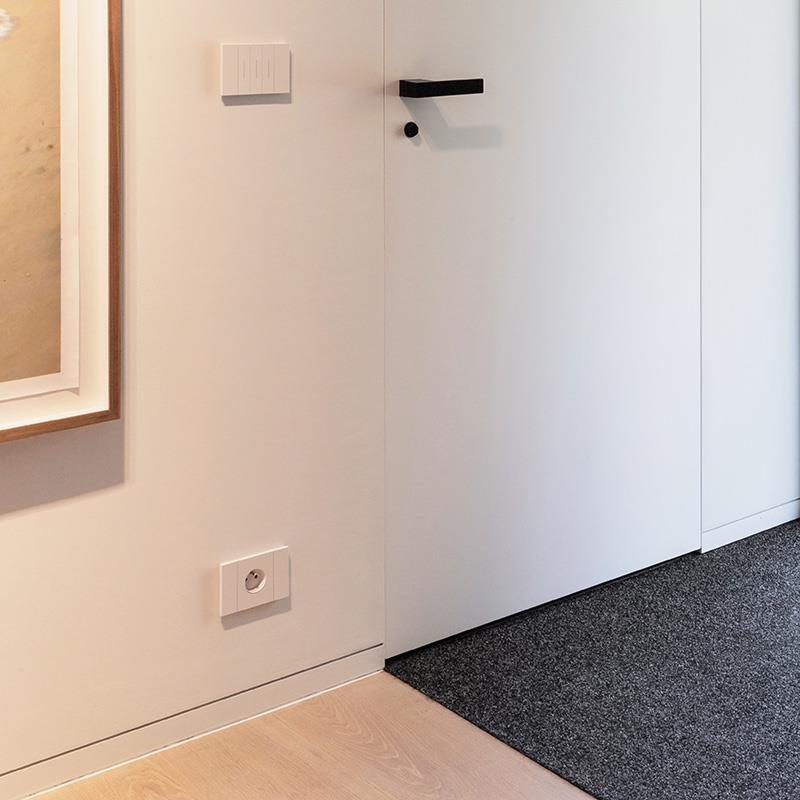

Once the wall is finished, only a shadow gap remains visible. In this way, not only the door leaf but also the corresponding plinth is flush with the wall.
The plinth provides a timeless finish that can be painted in the same colour as your wall.

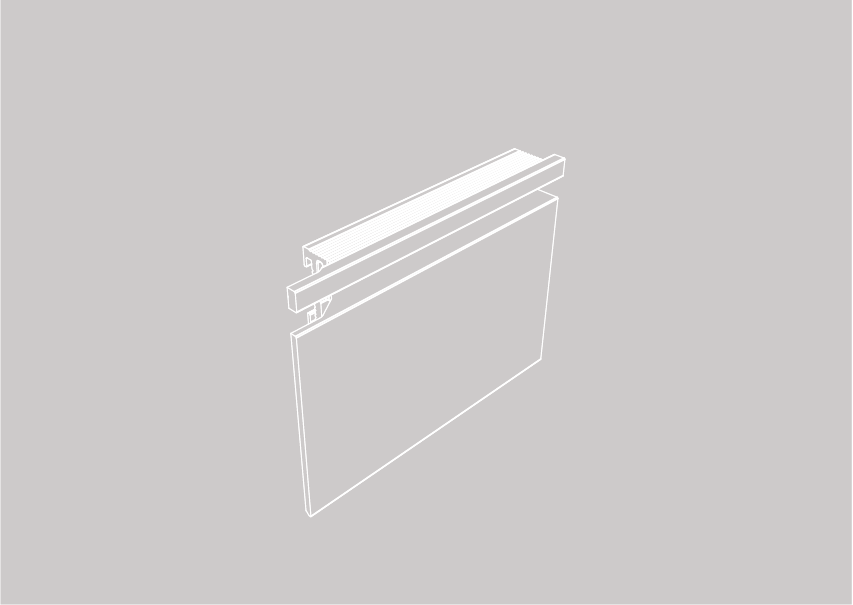

This plinth is sold as a set: base plinth with cover.

Available in two colours:
• White (RAL 9016)
• Black (RAL 9005)

The paint on the plinth is a primer and can be repainted.
Connect the connector piece to a regular plinth using our C001 connection pieces.

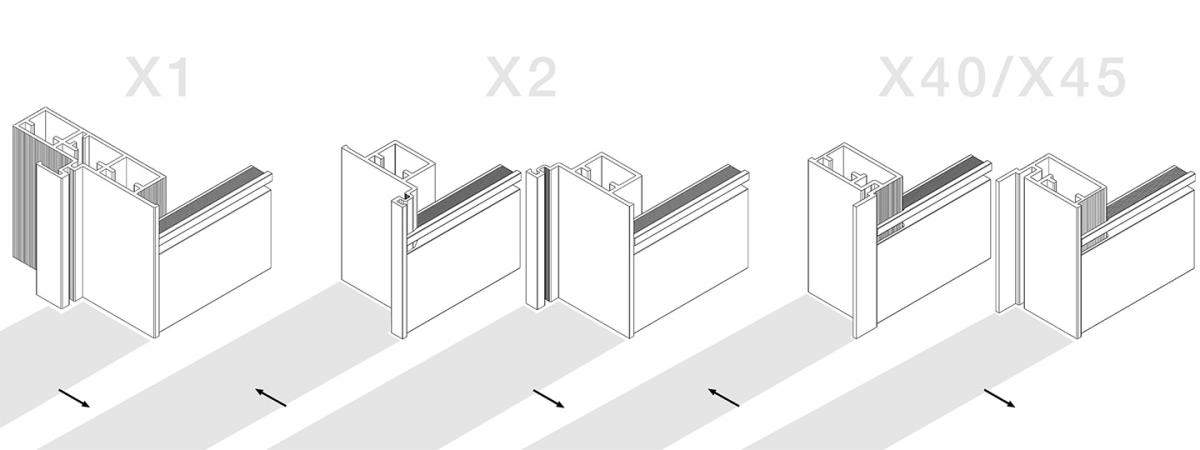

Order codes for connecting plinth – X1 door system:

You do not need this connector; you can place our XP50 plinth up against the X1 profile.



Order codes for connecting plinth – X2 door system:
XP50-X2-W-SET10 (Box of 10 sets – white plinths)

XP50-X2-W-SET01 (1 set – white plinth)
XP50-X2-B-SET10 (Box of 10 sets – black plinths)

XP50-X2-B-SET01 (1 set – black plinth)

Order codes for connecting plinth – X4 door system:
XP50-X4-W-SET10 (Box of 10 sets – white plinths)

XP50-X4-W-SET01 (1 set – white plinth)
XP50-X4-B-SET10 (Box of 10 sets – black plinths)

XP50-X4-B-SET01 (1 set – black plinth)



1 set = 1 door

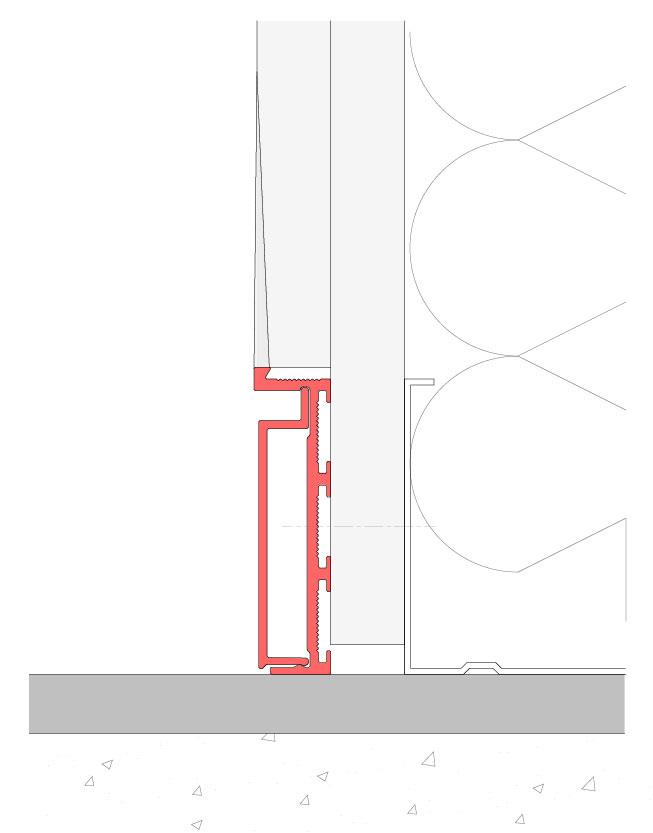

This plinth is suitable for various wall types:
• Plaster
• Drywall finish

Attach the plinth either mechanically or invisibly glue it to the wall structure.
