Roma

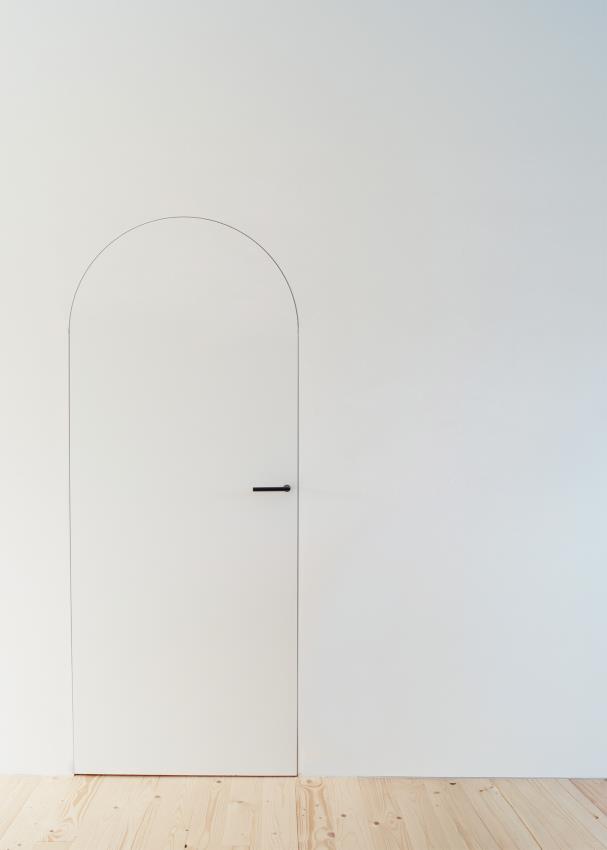

Arched door

boogdeur

boogdeur

In the box:



Frame
1 – Uprights and distance keepers
2 – Arched upper rail

Hinges

A24, A300 or TE340

Magnetic lock
D70 - 00BB (standard)
Other locks

  • Minimalistic design
  • 2-step installation:
    o Installation of the frame without a door
    o Installation of the door after the wall finishing
  • The arch is easy to finish using the Xinnix system.
  • The system can be installed in a regular doorway.
  • The use of a special finish on the door and/or wall is possible on request.

Door thickness Door type Xinnix System Flush push Flush pull Maximale hoogte Widths
40 mm A: No rebate X240 No  yes  3500 mm 730 - 830 - 930 mm

Other door thicknesses and widths are available upon request.

Wall finish

  • Plastering
  • Plasterboard
  • HPL
  • Veneer
  • ...


Door finish

  • To paint
  • HPL
  • Veneer
  • ...



Minimum finished wall thickness

X240: 75 mm

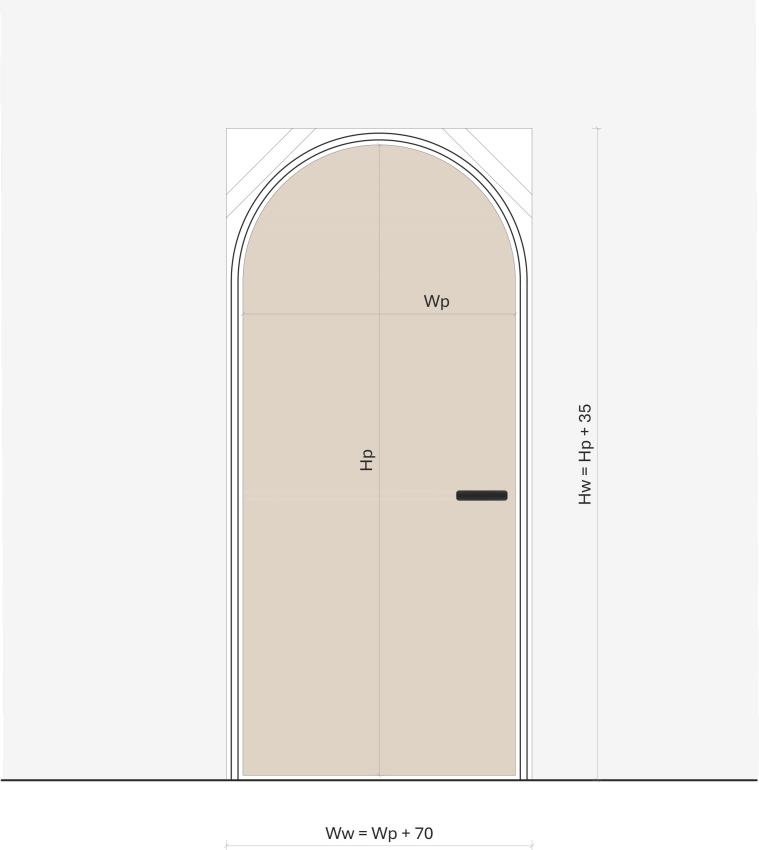

Hp = Height door panel
Hf = Height frame
Hw = Height of structural opening
Wp = Width door panel
Wf = Width frame
Ww = Width of structural opening
